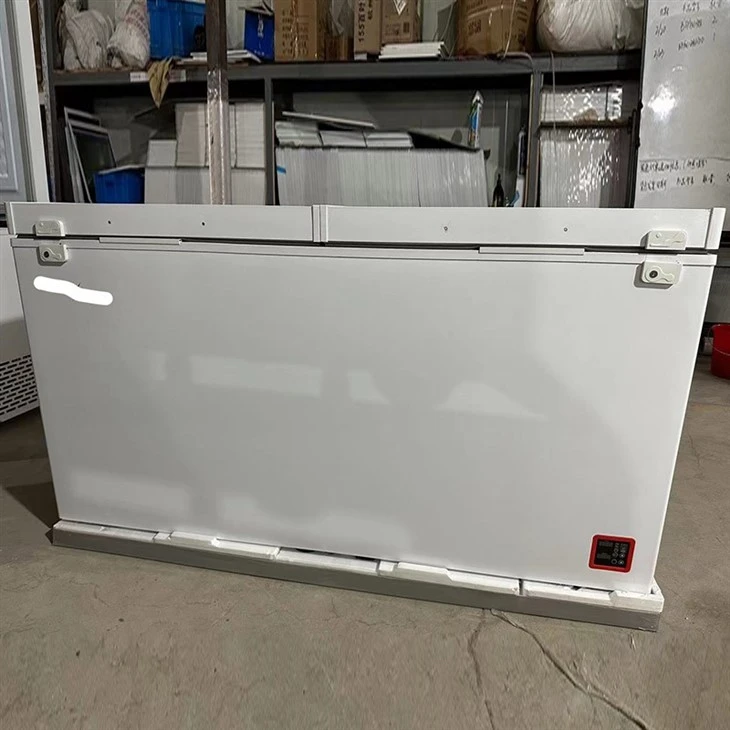

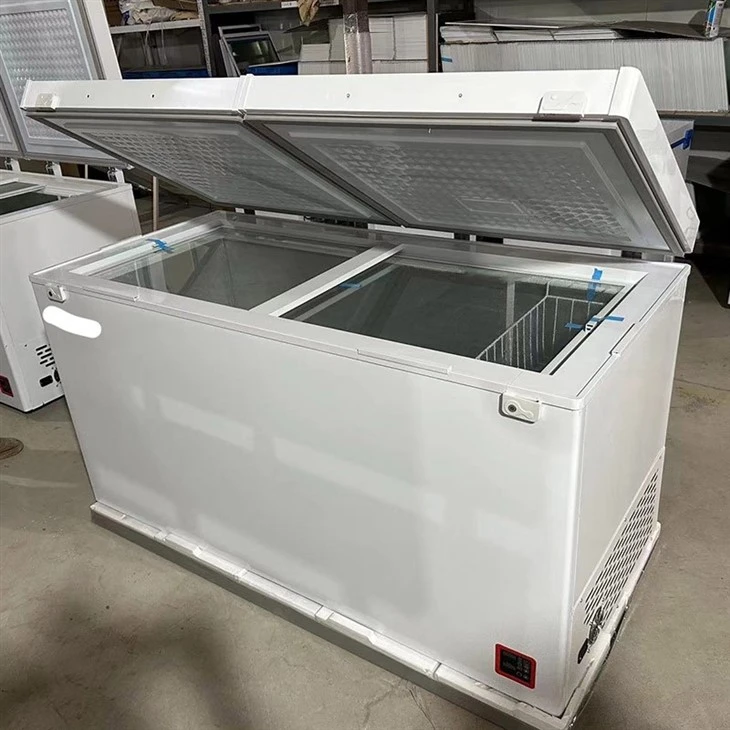

BD/BC-508H 508L DC Solar Chest Freezer
Spacious Storage, Flexible DC Power and Practical Everyday Design
The BD/BC-508H is a large-capacity chest freezer designed for users who need reliable frozen storage, convenient operation and flexible low-voltage power compatibility.
With a generous 508-liter capacity, DC12V/24V input and a rated power consumption of 157W, this model is suitable for homes, grocery stores, restaurants, farms, fisheries, rural communities and off-grid projects. It can be integrated into a properly configured solar power system, helping users reduce dependence on conventional grid electricity.
The freezer combines a clean white appearance with practical features such as an inner glass door, interior light, key lock, removable basket and mechanical thermostat. It is designed to make large-volume frozen storage simpler, safer and more organized.
508L Capacity for Bulk Frozen Storage
The spacious 508-liter cabinet provides enough room for both household food reserves and commercial inventory.
It is suitable for storing:
Meat and poultry
Fish and seafood
Frozen vegetables
Ice cream and desserts
Prepared meals
Packaged frozen products
Farm produce
Restaurant ingredients
Seasonal food supplies
Family emergency reserves
For businesses, the large capacity makes it easier to prepare inventory for busy periods. For families, it reduces the need for frequent shopping and provides more flexibility for bulk purchasing.
DC12V/24V Power for Solar and Off-Grid Use
The BD/BC-508H supports DC12V and DC24V input, allowing it to work with different low-voltage power systems.

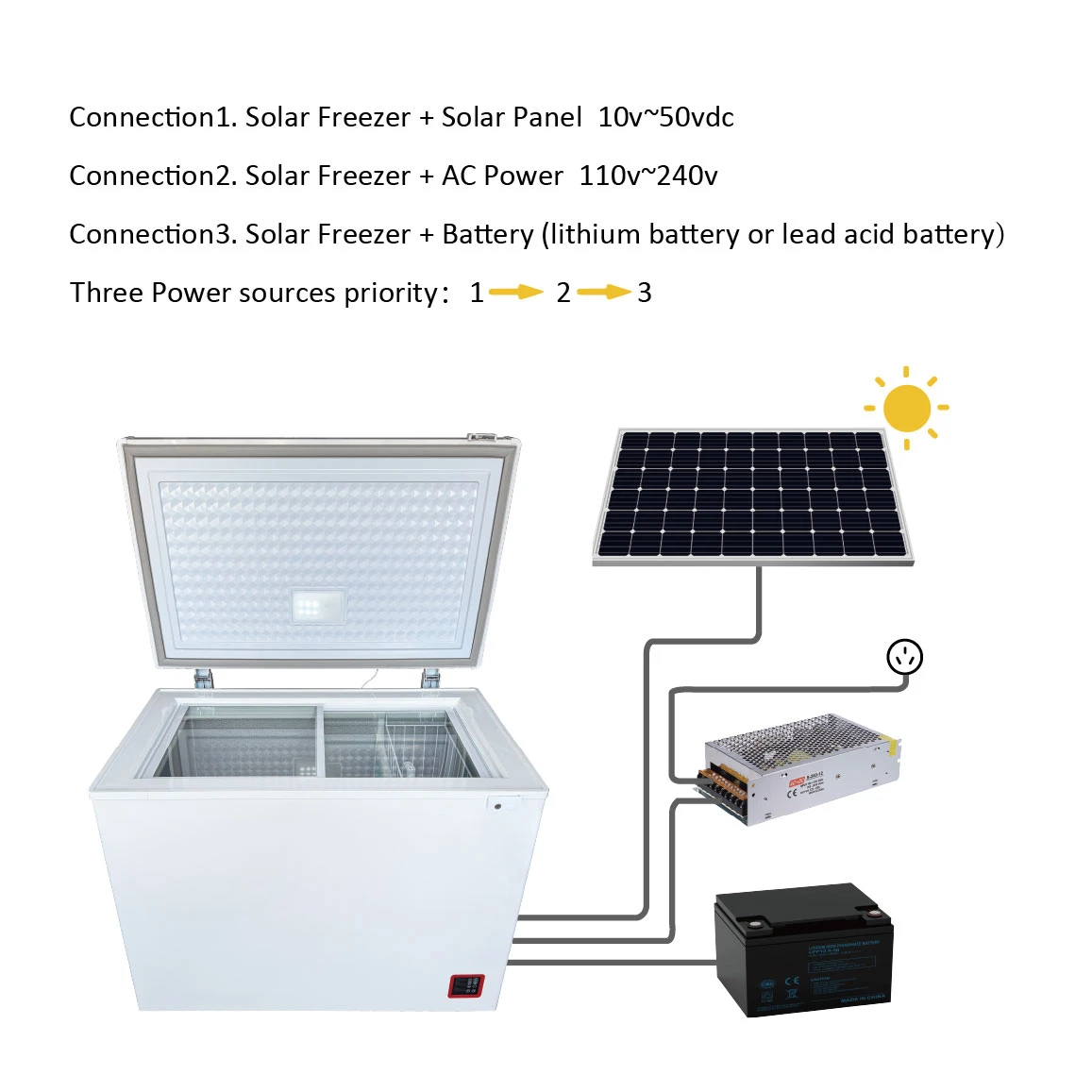

A typical solar refrigeration setup may include:
Solar Panels → Charge Controller → Battery Bank → BD/BC-508H Freezer
This makes the freezer suitable for:
Off-grid homes
Farms and ranches
Fishing villages
Islands and coastal areas
Rural stores
Outdoor food businesses
Remote work sites
Renewable-energy projects
When the solar system is correctly designed, users can make better use of sunlight and reduce reliance on traditional electricity.
157W Efficient Operation
With a rated power consumption of 157W, the freezer is designed to provide reliable cooling for its large 508L storage capacity.
The efficient power design can help:
Reduce unnecessary electricity use
Improve battery utilization
Support solar refrigeration systems
Lower long-term operating costs
Provide practical cooling in areas with limited grid access
Reliable Freezing at -18°C or Below
The BD/BC-508H is designed to maintain temperatures of -18°C or below, providing dependable frozen storage for food and other temperature-sensitive products.
Its single-temperature design is suitable for users who mainly require stable deep-freezing performance.

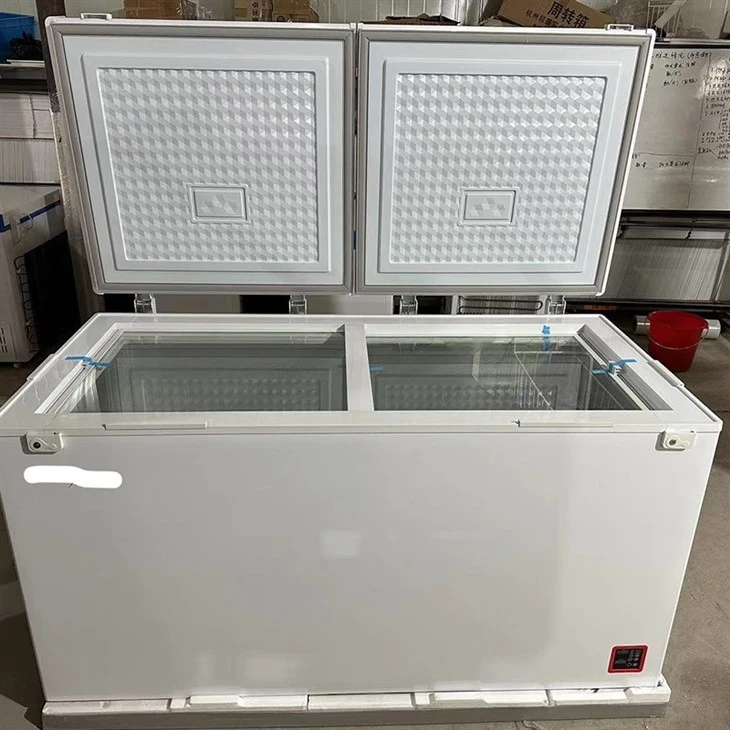

Inner Glass Door for Better Cold Management
An inner glass door is installed beneath the main lid.
This allows users to check stored products before fully opening the freezer compartment. It helps reduce unnecessary cold-air loss and makes the interior easier to organize.
The inner glass door is particularly useful for:
Grocery stores
Restaurants
Ice cream sales
Food kiosks
High-frequency commercial use
Practical Features for Daily Use
Interior Light
The built-in light makes it easier to find products in dark or low-light environments.
Key and Lock
The lock helps protect stored goods in commercial, shared or outdoor locations.

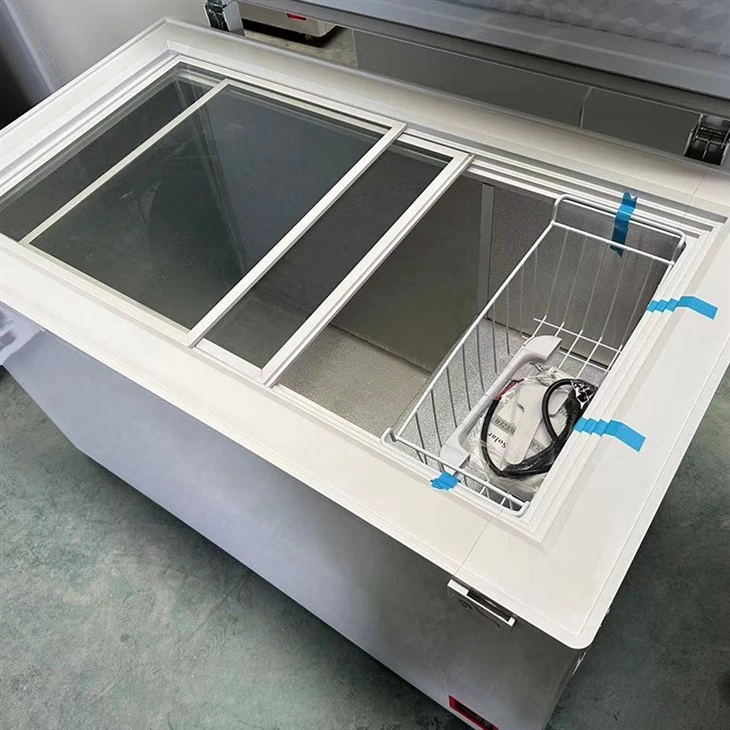

Removable Basket
One storage basket is included for organizing smaller and frequently used items.
Mechanical Thermostat
The mechanical control is simple, reliable and easy to operate.
Manual Defrost
The manual defrost design makes maintenance straightforward.
Single-Door Chest Structure
The top-opening design is durable and practical for large-volume frozen storage.
Suitable for Home and Commercial Applications
Home Use
Ideal for large families, bulk shopping and long-term food reserves.
Restaurants and Food Stores
Suitable for meat, seafood, frozen ingredients and packaged products.
Farms and Rural Areas
A practical solution for storing food and agricultural products where grid electricity may be limited.
Fisheries and Coastal Markets
Provides large storage space for fish, shrimp and seafood.
Solar and Off-Grid Projects
DC12V/24V compatibility makes it suitable for properly configured renewable-energy systems.
Product Highlights
508L large storage capacity
DC12V/24V input
157W rated power consumption
Temperature of -18°C or below
Inner glass door
Key and lock
Interior light
One removable basket
Mechanical thermostat
Manual defrost
White cabinet
Single compressor
Suitable for household, commercial and off-grid use
Technical Specifications
| Item | Specification |
|---|---|
| Model | BD/BC-508H |
| Power Consumption | 157W |
| Input Voltage | DC12V / DC24V |
| Capacity | 508 Liters |
| Temperature Range | ≤ -18°C |
| Product Size | 1826 × 806 × 840 mm |
| Carton Size | 1866 × 815 × 882 mm |
| Net Weight | 103 kg |
| Gross Weight | 109 kg |
| Inner Glass Door | Yes |
| Key & Lock | Yes |
| Interior Light | Yes |
| Basket | 1 pc |
| Thermostat | Mechanical |
| Colour | White |
| Defrost | Manual |
| Compressor | 1 |
| Door | 1 |
| Loading Quantity (40HQ) | 52 units |
More Space for Everyday Storage
The BD/BC-508H combines 508L large capacity, DC12V/24V compatibility and practical features in one dependable freezer.
Whether used for family food reserves, commercial inventory, farm products or off-grid refrigeration, it provides a flexible and convenient solution for large-volume frozen storage.
Large Capacity. Flexible DC Power. Reliable Frozen Storage.
|
|
|
|
Facts speak louder than words.Welcome to visit our factory. We have obtained authoritative quality certifications including CE, ISO9001 and ISO14001. |
Customization supported. Full specifications. Best prices for bulk orders. |
|
|
|
Various styles available. Customization available for: |
| Direct Drive Type & Name | Application Scenario | Solar Panel | Battery Required | Mains Power or Generator Required | Working Hours | Sunny Day | Rainy Day | Night Time | Foam Layer Thickness | Diagram |
| Solar Direct Drive 1 | Only works during the day, for freezing or cooling beer, beverages and mineral water | Required | Not required | Not required | 4~6 hours, only operates when there is sunlight during the day; manually switch to mains power when there is no sunlight | Solar panel only | Can use mains power or generator, need a adapter | Can use mains power or generator, need a adapter | 65mm/110mm |
|
| Solar Direct Drive 2 | Mains power available, but electricity cost is high | Required | Not required | Required | 24 hours, uses solar panel on sunny days, automatically switches to mains power otherwise | Solar panel | Can use mains power or generator, need a adapter | Can use mains power or generator, need a adapter | 65mm/110mm |
|
| Solar Direct Drive 3 | No mains power available | Required | Requires large-capacity battery |
Not required, generator can be used during rainy days | 24 hours, automatic switching | Solar panel only | Can use mains power or generator, need a adapter | Can use mains power or generator, need a adapter | 65mm/110mm |
|
| Solar Direct Drive 4 | Mains power available but unstable with frequent outages; solar panel is prioritized, switches to mains power at night, uses battery if no mains power at night | Required | Requires small-capacity battery |
Mains power or generator required | 24 hours, automatic switching | Solar panel | Can use mains power or generator, need a adapter | Can use mains power or generator, need a adapter | 65mm/110mm |
|
| Solar Direct Drive 5 | Good lighting conditions, no mains power, no need for battery, requires ice battery configuration | Required | Not required | Generator can be used on rainy days | 24 hours, only operates when there is sunlight during the day; manually switch to generator with adapter during rainy days | Solar panel | Can use mains power,need a adapter, non-stop operation, manual switching | Can use mains power,need a adapter, non-stop operation, manual switching | Preferably 110mm, with adapter |
|
| Solar Direct Drive 6 | PAYGO: installment payment for rental freezers, confirmation required for battery installation method and delivery method | Requires large-capacity configuration | Requires large-capacity lithium battery |
Not required | 24-hour operation | Solar panel only | Solar panel | Solar panel | 65mm/110mm |
|
| Solar Direct Drive 7 | Lighting available, free mains power or low-cost mains power, no need for battery | Required | Not required | Generator can be used on rainy days | Non-stop operation as long as power is available, suitable for frozen food, not suitable for fresh-keeping and refrigerated food | Solar panel and mains power | Can use mains power,need a adapter, non-stop operation, automatic switching | Can use mains power,need a adapter, non-stop operation, automatic switching | 65mm/110mm |
|
|
Solar Freezer | Cool Without Grid Power, Store Global Delicacies in Large Capacity, Everything You Need Is Here! Energy-saving and eco-friendly. |
|
|
|
One Freezer Meets All Your Storage Needs! Years of technical expertise, dedicated to crafting a quality refrigerator. |
|
|
|
|
Expanded Capacity · Universal Storage for Global Delicacies Suitable for both household and commercial use. |
Step-Type Layered Design · Max Space Utilization · Uniform Cooling Creates staggered storage compartments, suitable for cans, bottles, food trays and other items of various sizes, eliminating wasted space. |
|
|
|
|
Equipped with branded compressors, delivering powerful & efficient cooling performance. High-power compressor, efficient cooling, low vibration, low noise, long service life. |
The design of the hinge is more user-friendly. 45° support design, effectively prevents hand pinching. |
|
|
|
|
Use anti-rust galvanized plate for corner cutting,accurately customize the size according to customer needs to meet the diverse needs of customers. Sturdy, durable and high load-bearing |
The internal material of the freezer is embossed galvanized aluminum plate. Advantages: |
|
|
|
|
Aluminum Tube Evaporator Our refrigeration pipes are aluminum tubes of 7.5×0.75. |
High-quality LED lighting with bright, energy-saving performance. Lower power consumption, higher brightness, no heat generation, and better low-temperature resistance. |
|
|
|
|
|
|
|
It can be shipped with other goods as built-in cargo. It helps customers save freight costs by allowing other goods to be shipped inside. |
||||
